IO-Link / analog converter AI Multi thermocouple, M12, straight
SKU: 5000-00501-1400001 Type: IOL AI-TH-V2-MULT-PAR
Available3–5 business days delivery
€176.50 / pieces
€210.04 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- IO-Link / analog converter
- AI Multi Thermo Element, M12
- 16Bit, IP65/67, IO-Link V1.1, Class A
Diagnostics
| Short circuit diagnosis | Yes |
| Temperature monitoring | Yes |
| Overload diagnosis | Yes |
| Diagnostic via LED | Yes |
| IO-Link events | Undervoltage supply, lower limit, upper limit, Overvoltage supply, Overtemperature, Device defect |
| LED display | Ethernet connection/data traffic |
| Diagnostic via IO-Link | Yes |
Industrial communication | IO-Link
| Process data length input | 2 bytes |
| Transmission rate | COM2 (38.4 kbit/s) |
| Port class | A |
| Cycle time min. | 10 ms |
| Revision ID | V1.1 |
Electrical data | Supply
| Operating voltage DC | 24 V |
| Current carrying capacity | up to 0.2 A |
| Operating voltage DC max. | 30 V |
| Operating voltage DC min. | 18 V |
| Current consumption max. | 15 mA |
| Norm operating voltage | IEC/EN 61131-2 |
| Operating voltage US DC | 24 V |
Electrical data | Input
| Conversion time with net suppression | OFF: 10 ms, 50 Hz: 60 ms, 60 Hz: 100 ms |
| Current carrying capacity | up to 0.2 A |
Device protection | Electrical
| Surge protection | Yes |
| Short circuit protection sensor supply | Yes |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Invers-polarity protection | Yes |

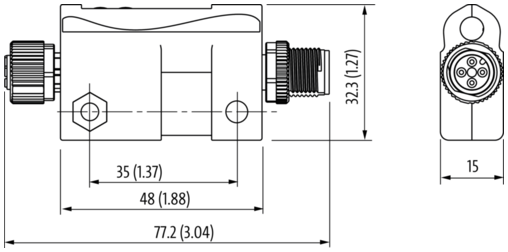

Mechanical data | Mounting data
| Height | 32.3 mm |
| Width | 77.2 mm |
| Depth | 15 mm |
Environmental characteristics | Climatic
| Ambient temperature | -40 °C … 85 °C |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -30 °C |
Mechanical data | Material data
| Housing | Plastic |
