IO-Link / analog converter AO U -10- + 10V, M12, straight
SKU: 5000-00501-2210000 Type: IOL AO-U-V2-10V-BIP
Available3–5 business days delivery
€170.60 / pieces
€203.01 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- IO-Link / analog converter
- AO U -10...+10V, M12
- 16Bit, IP65/67, IO-Link V1.1, Class A
Electrical data | Output
| Output current max. | 0,2 A |
| Conversion time analog output max. | 5 ms |
| Type Output | 2-, 3-, 4-wire technology |
Electrical data | Supply
| Operating voltage UA DC | 24 V |
| Operating voltage DC | 24 V |
| Operating voltage DC max. | 30 V |
| Operating voltage DC min. | 18 V |
| Current consumption max. | 19 mA |
| Norm operating voltage | IEC/EN 61131-2 |
Device protection | Electrical
| Surge protection | Yes |
| Short-circuit protection output | Yes |
| Short circuit protection sensor supply | Yes |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Invers-polarity protection | Yes |
Industrial communication | IO-Link
| Transmission rate | COM2 (38.4 kbit/s) |
| Port class | A |
| Cycle time min. | 2,3 ms |
| Process data length output | 2 bytes |
| Revision ID | V1.1 |

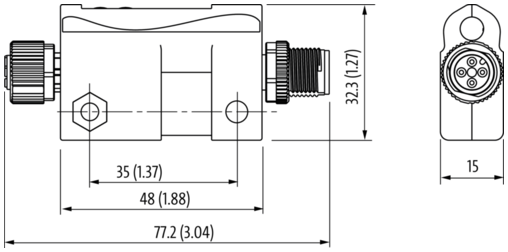

Mechanical data | Mounting data
| Height | 32.3 mm |
| Width | 77.2 mm |
| Depth | 15 mm |
Environmental characteristics | Climatic
| Ambient temperature | -40 °C … 85 °C |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -30 °C |
Mechanical data | Material data
| Housing | Plastic |
Diagnostics
| Temperature monitoring | Yes |
| Diagnostic via LED | Yes |
| IO-Link events | Undervoltage supply, lower limit, upper limit, Overvoltage supply, Overtemperature, Device defect |
| LED display | Ethernet connection/data traffic |
| Diagnostic via IO-Link | Yes |
