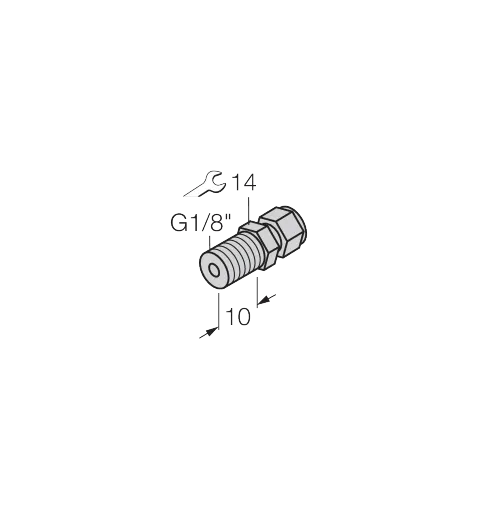

Accessories Compression Fitting For Temperature Sensors
SKU: 9910405 Type: CF-M-3-G1/8-A4
Available3–5 business days delivery
€15.40 / pieces
€18.33 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- Compression fittings for direct mounting of TP temperature probes
- Metal compression fitting
- For probe with 3 mm diameter
- Process connection G1/8" male thread General description
Mechanical data
| Sealing material | stainless steel |
| Inner diameter | 3.5 mm |
| Pressure resistance | 100 bar |
| Process connection | G 1/8'' male thread |
| Max. tightening torque of housing nut | 100 Nm |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
Temperature range
| Measuring range | -50…350 °C |
| Measuring range | -58…662 °F |
Other
| Process connection | G1/8 Außengewinde |
| Housing material | Edelstahl |
