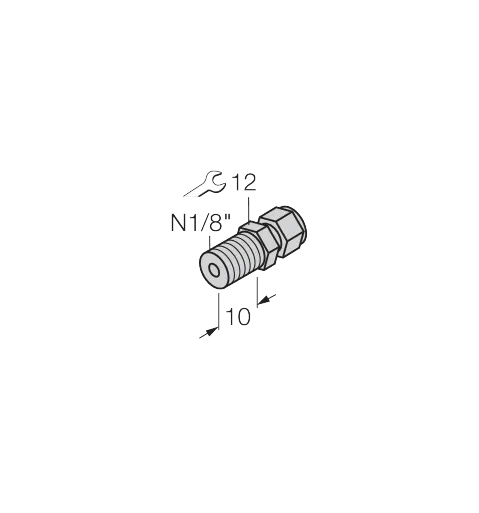

Accessories Compression Fitting For Temperature Sensors
SKU: 9910406 Type: CF-M-3-N1/8-A4
Available3–5 business days delivery
€154.00 / pieces
€183.26 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- Compression fittings for direct mounting of TP temperature probes
- Metal compression fitting
- For probe with 3 mm diameter
- Process connection 1/8" NPT male thread General description
Mechanical data
| Sealing material | stainless steel |
| Inner diameter | 3.5 mm |
| Pressure resistance | 100 bar |
| Process connection | 1/8″ NPT male thread |
| Max. tightening torque of housing nut | 100 Nm |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
Temperature range
| Measuring range | -50…350 °C |
| Measuring range | -58…662 °F |
Other
| Process connection | NPT 1/8 Außengewinde |
| Housing material | Edelstahl |
