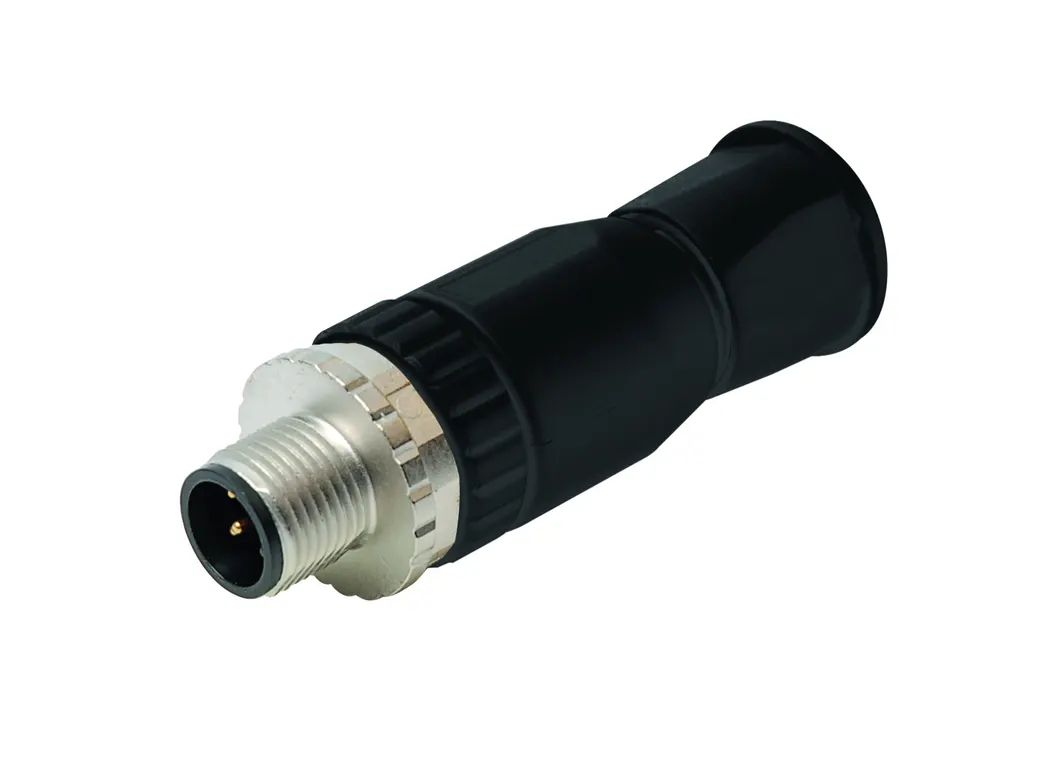

Field-Wireable Connector Male Connector M12 × 1, Straight
SKU: 100002288 Type: FW-ERSPM0416-SA-S-0408
Available3–5 business days delivery
€14.10 / pieces
€16.78 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- Screw-clamp terminal
- A-coding
- 4-pin
- Cable feedthrough: 4.0…8.0 mm
- Terminal capacity: 0.25…1.5 mm²
- Approval: cULus
Electrical properties at +20 °C
| Insulation Resistance | ≥ 108 Ω |
| Current carrying capacities | 4 A |
| Rated voltage | 250 V |
Connector A
| Connector A | Male, M12 × 1, Straight, A-coded |
| Grip body | Plastic, PA6 GF, UL 94, Black |
| Seal | Plastic |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Mechanical lifespan (relay contacts) | > 100 Mating cycles |
| Number of poles | 4 |
| Core cross-section/Clamping ability | 0.25…1.5 mm² |
| External diameter of the cable | 4…8 mm |
| Connection type | Screw/clamp connection |
| Tightening torque | from 0.4 to 0.4 Nm |
| Contact carriers | Plastic, PA UL94-V0, Black |
| Contacts | Brass, CuZn, Gold-plated |
| Degree of protection (IP) | IP67 |
Mechanical and chemical properties
| Approvals | cULus |
