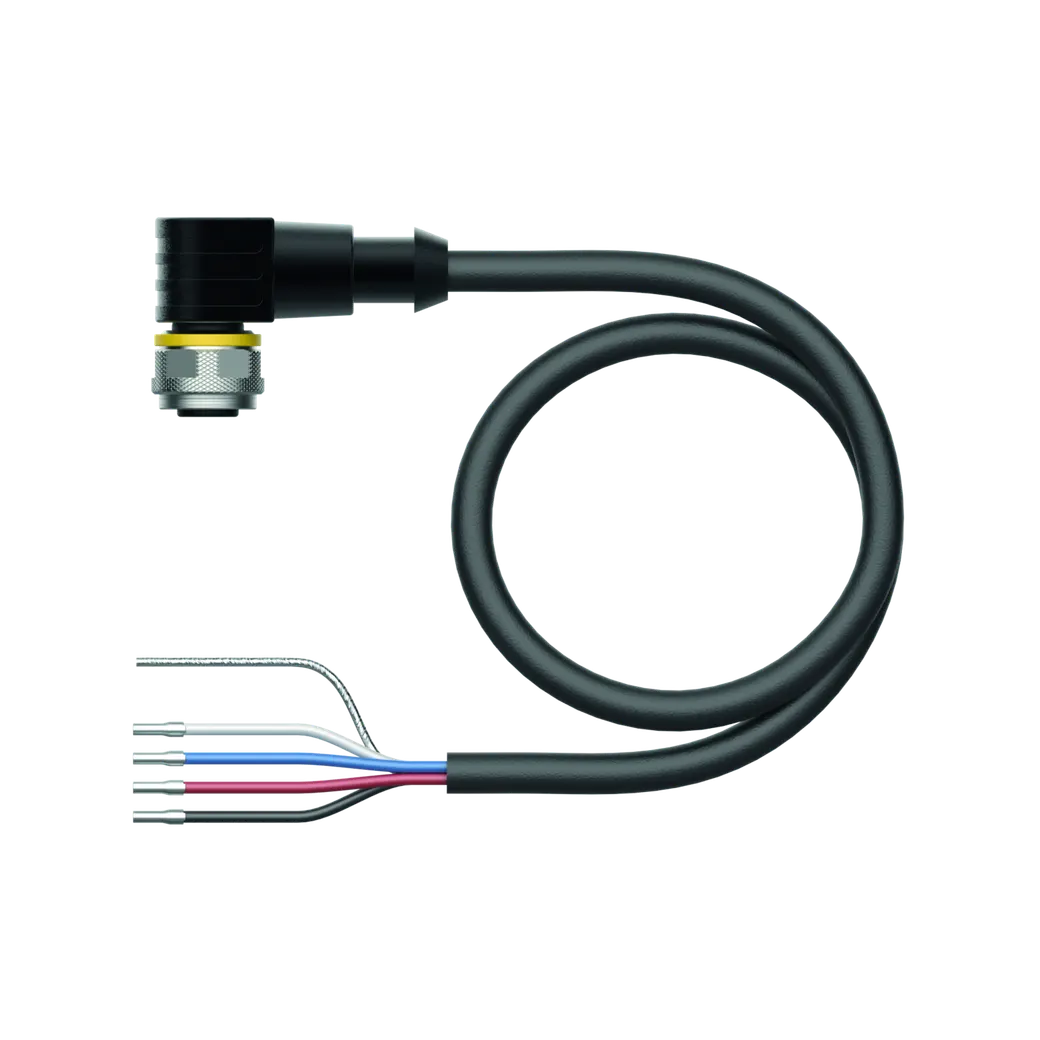

Bus Cable for CAN (DeviceNet, CANopen) – PUR Cable Jacket, Thin
SKU: 6933244 Type: WKC5701-5M
Available3–5 business days delivery
€34.70 / pieces
€41.29 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- Sheathing material: PUR
- Jacket color: Anthracite
- Power pair: AWG 2/22
- Data pair: AWG 2/24
- Oil-resistant acc. to VDE 0472, part 803
- Flame-retardant acc. to VDE 0472, part 804/B
- Halogen-free
- UL approval
- End open
- M12-female, angled, A-coded
- Cable length: 5.0 m
Cable
| Core insulation | PE |
| Network protocol | DeviceNet |
| Network protocol | CANopen, 5701 |
| Core colors | Power: RD, BK, Data: WH, BU |
| Cable diameter | Ø 6.7 mm |
| Wire length | 5 m |
| Shielding | yes |
| Core cross section | 2 x 0.25 mm² |
| Core cross section | 2x 0.34 mm2 |
| Cable jacket | PUR, Anthracite |
Connector A
| Connector A | Female, M12 × 1, Angled, A-coded |
| Grip body | Plastic, TPU, Black |
| Seal | Plastic, FPM/FKM |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Mechanical lifespan (relay contacts) | > 100 Mating cycles |
| Number of poles | 5 |
| Tightening torque | from 0.8 to 1 Nm |
| Contact carriers | Plastic, TPU, Black |
| Pollution degree | 3 |
| Contacts | Metal, CuZn, Gold-plated |
| Degree of protection (IP) | IP67 |
| Degree of protection (IP) | IP69K |
Electrical properties at +20 °C
| Nom. impedance | 120 Ω (1 MHz) |
| Current carrying capacities | 4 A |
| Rated voltage | 250 V |
| Nom. capacitance | 37 pF/m |
| DC resistance (loop) | 82 Ω/km |
Other features
| Halogen free | yes |
| UV-resistant | yes |
| Approvals | cULus |
| Qualified for drag chain use | yes |
| Free of LABS | yes |
Mechanical and chemical properties
| Bending radius (flexible) | ≥ 5 x Ø |
| Bending radius (dynamic) | ≥ 10 x Ø |
| Ambient temperature | from -40 to 80 °C |
