High-Temperature Resistant Actuator and Sensor Cable – Extension Cable
SKU: 8038668 Type: HT-WAK4-2-HT-WAS4/S2430
Available3–5 business days delivery
€53.00 / pieces
€63.07 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- M12 female connector, straight, 4-pin
- M12 male connector, straight, 4-pin
- Sheath material: PTFE
- Sheath color: white
- Flame-retardant
- Resistant to welding sparks
- Resistant to chemicals, UV radiation and oils
- Resistant to acids and alkaline solutions
- LABS free
- Resistant to microbes and hydrolysis
- Cold and heat-flexible
- RoHS-compliant
- Protection class IP65
- Temperature range of the cable: -190°C… 260°C
- Cable length: 2.0 m
Electrical properties at +20 °C
| Insulation Resistance | ≥ 108 Ω |
| Current carrying capacities | 4 A |
| Continuity resistance | ≤ 5 mΩ |
| Rated voltage | 250 V |
Cable
| Core insulation | PTFE |
| Arrangement of strands | 7 x 0.254 mm |
| Core colors | BN, WH, BU, BK |
| Cable diameter | Ø 3.8 mm ±0.20 |
| Wire length | 2 m |
| Core cross section | 4 x 0.34 mm² |
| Cable jacket | PTFE, White |
Connector A

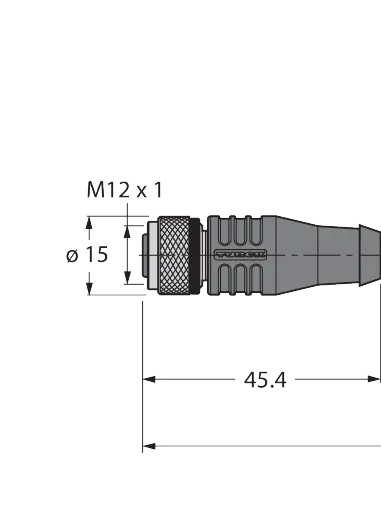

| Connector A | Female, M12 × 1, Straight |
| Grip body | Plastic, PBT GF, Black |
| Seal | Plastic, FPM/FKM |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Mechanical lifespan (relay contacts) | > 100 Mating cycles |
| Number of poles | 4 |
| Tightening torque | from 0.8 to 1 Nm |
| Contact carriers | Plastic, PBT GF, Black |
| Pollution degree | 3 |
| Contacts | Brass, CuZn, Gold-plated |
| Degree of protection (IP) | IP65 |
Connector B
| Connector B | Male, M12 × 1, Straight |
| Number of poles | 4 |
| Tightening torque | from 0.8 to 1 Nm |
| Contact carriers | Plastic, TPU, Black |
Mechanical and chemical properties
| Bending radius (flexible) | ≥ 5 x Ø |
| Bending radius (dynamic) | ≥ 10 x Ø |
| Ambient temperature | from -20 to 150 °C |
