Monitor frequency, vibration sensor, Ø21mm 73 high, 18-30V DC, -40-85°C, programmable/configurable, 2x PNP NC/NO, 4-20mA, IO-Link, M12 plug connector 4-pin, stainless steel 1.4305, IP67, parameterization
SKU: WF210020
Available3–5 business days delivery
€445.00 / pieces
€529.55 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteFeatures
- integrated temperature measurement
- Analog output 4-20mA Parameterization via IO-Link
- A vibration sensor detects mechanical oscillations (vibrations) of an object and converts them into an electrical signal. The signal can be output in terms of acceleration (m/s² or g) or speed (mm/s).
Mechanical features
| Vibration speed | 64 mm/s |
| Max. tightening torque connection A | 0.4 Nm |
| Height | 72.5 mm |
| Ambient temperature | from -40 to 80 °C |
| Process connection | M8x1.25mm |
| Weight | 90 g |
| Wrench width | 24 mm |
| Housing material | Stainless steel 1.4305 |
| Design | Cylinder plain |
| Vibration resistance acceleration | 15 g |
| Maximum tightening torque | 8 Nm |
| Diameter | 23.8 mm |
| Degree of protection (IP) | IP67 |
| Degree of protection (IP) | IP66 |
| Abmessung | Ø23.8mm, 72.5mm high |
Electrical features
| Cross sensitivity | 5 % |
| Measurement frequency | 10 - 1000 Hz |
| Elektrischer Anschluss | Connector M12 |
| Elektrischer Anschluss | M12 4-pin plug connector |
| Current carrying capacities | 100mA (Out 1) | 500mA (Out 2) |
| Setting procedure | Parameterization via IO-Link |
| Number of poles | 4 |
| Type of analogy output | 4…20 mA |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| No-load current | 120 mA |
| Protection functions | Overload protection | Short circuit protection |
| Calibration point | without IO-Link: 90% measuring range @ 159.2 Hz | with IO-Link: 1g (rms) @ 159.2 Hz |
| Operating voltage (DC) | 18 - 30 V |
| Operating voltage | from 18 to 30 V |
| Measurement accuracy | ±10 % (according to DIN ISO 2954) ±0.5 % at calibration point |
More
| IPF Product Group | 730 special devices (diverse) |
| packaging dimensions | 107 x 85 x 67 mm |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
| Reach-compliant | Yes |
| RoHS‑compliant | Yes |
| gross weight | 149 g |
Other features
| Supported measurement quantities | Vibration velocity (mm/s, rms) | Vibration acceleration (g, rms) | Vibration acceleration (g, peak) | Temperature (°C) |
Installation / Disposal
| Disposal | WEEE number according to § 6 para. 3 ElektroG: 40951076 |
| Installation | Mounting / installation may only be carried out by a qualified electrician! |
Other
| Process connection | M8x1 |
| Number of poles | 4-polig |
| Design | Zylinder |
| Connector type | M12 |
| Switching output | PNP |
Ipf Adb WF210020(DE)
ipf_adb_WF210020_de.pdf
Ipf Bda WF210020(DE)
ipf_bda_WF210020_de.pdf
Ipf Ukc WF210020(DE)
ipf_ukc_WF210020_de.pdf
Ipf Mcd WF210020(DE)
ipf_mcd_WF210020_de.pdf
Ipf Cek WF210020(DE)
ipf_cek_WF210020_de.pdf
Ipf Ulz Standard M1
ipf_ulz_standard_m1.pdf
Ipf Ccc Standard M1
ipf_ccc_standard_m1.pdf
Ipf Csa Standard M1
ipf_csa_standard_m1.pdf
Ipf Iof WF210020(DE)
ipf_iof_WF210020_de.pdf
- Cable socket, angular, self- assembly, screw connection, Ø3-6. 5mm, 4A, 240V, -25-90°C, M12 socket 4-pin, IP67, PBTVK003020
Cable socket, Straight, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Female (socket) 4pin, IP67, PBTVK003024

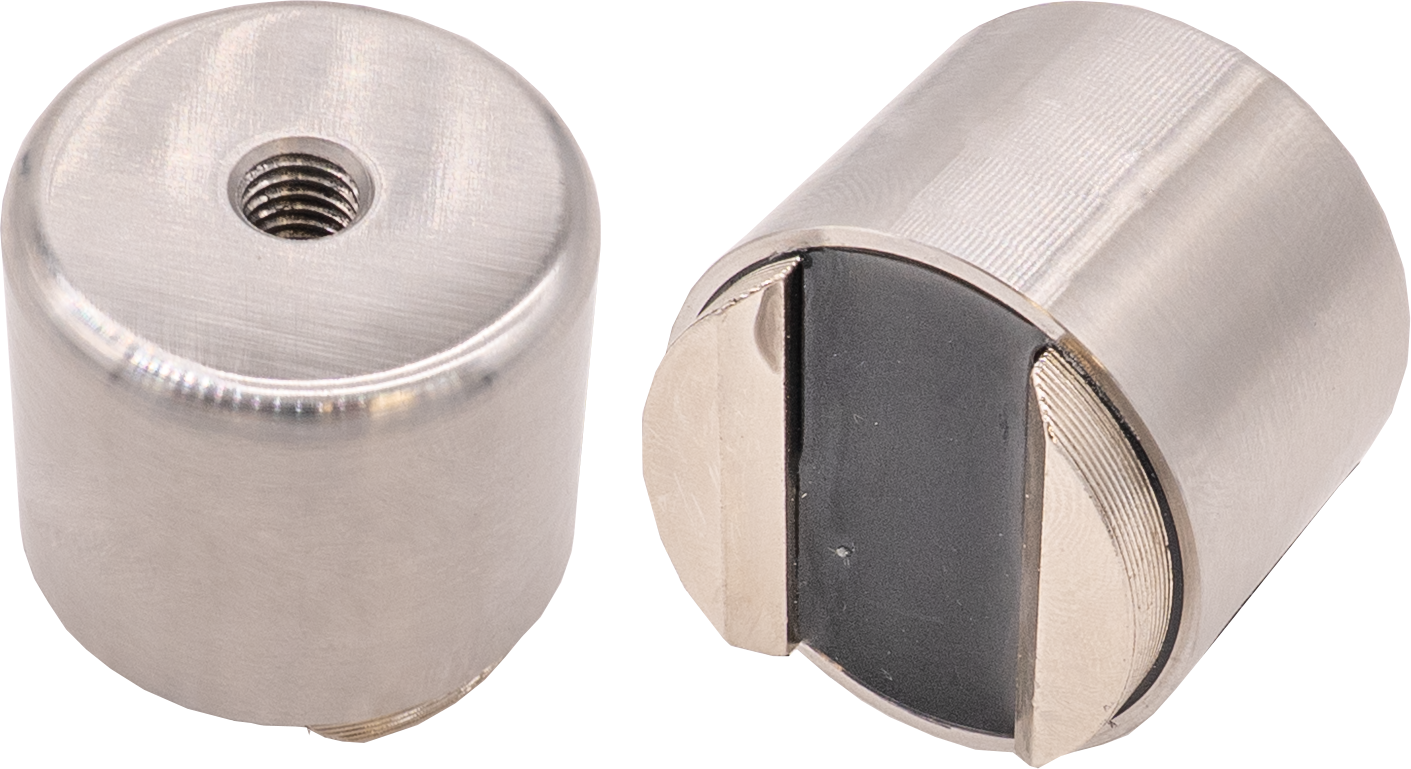

Accessories, magnetic, Ø35mm, internal hole M8x1.25mm, galvanized steel (galv.steel)AY000189- Connection cable, 2m, M12 Female (socket) 4pin Angular, Free conductor end, 4x0.34mm², PUR (Polyurethane), Ø5.5mm, 250V, - 25-90°C, IP67, Shielded, Suitable for trailing chain and torsion resistant, Oil and cooling lubricants, Welding area, Silicon...VK205321
