counter multifunctional, 48x108x48mm, Display LCD, 12 decades, 55kHz, 2x preset, 10-30V DC, 2x Relay contact Change-over contact (NO/NC), Screw connection 13pin, IP65, Plastic PC, Adding, Subtracting, Background lighting of LC display, With reset ...
SKU: CM030980
Available3–5 business days delivery
€271.70 / pieces
€323.32 incl. VAT
These are our list prices.Get an individual quote within 24 h.
Request a quoteElectrical features
| Switching voltage | 250 V |
| With quadruple evaluation | Yes |
| Elektrischer Anschluss | Clamped terminal connection |
| Number of poles | 13 |
| Switching power | 30 VA |
| Number of decades | 12 |
| Type of switching output | Relay contact |
| Type of switch function | Change-over contact (NO/NC) |
| Design of 2nd switching output | Relay contact |
| Wipe contact time | 0,01 - 99,99 s |
| Number of switching outputs | 2 |
| Power consumption | 4.5 VA |
| Indication | LCD display (illuminated) |
| Design of signal input A | PNP/NPN |
| Design of signal input B | PNP/NPN |
| With elapsed-time counting function | Yes |
| Design of 2nd switching function | Change-over contact (NO/NC) |
| Number of adjustable presets | 2 |
| Counting frequency | 55 kHz |
| Sensor supply voltage | 24 V |
| Operating voltage (DC) | 10 - 30 V |
| Sensor supply current | 80 mA |
| Rated switch current | 3000 mA |
| With reset function | Yes |
Other features
| Humidity in operation (non-condensing) | 93 % |
| Counting functions | adding | subtracting |
More
| IPF Product Group | 500 counters |
| packaging dimensions | 210 x 138 x 95 mm |
| POP-compliant | Yes |
| Customs tariff number | 90291000 |
| WEEE number | 40951076 |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| RoHS‑compliant | Yes |
| gross weight | 196 g |
Installation / Disposal
| Disposal | WEEE number according to § 6 para. 3 ElektroG: 40951076 |
| Installation | Mounting / installation may only be carried out by a qualified electrician! |
Classification
| ETIM 8 | EC002300 Built-in pulse counter |
Mechanical features
| Height | 48 mm |
| Width | 48 mm |
| Mounting method | Panel mounting |
| Ambient temperature | from -20 to 65 °C |
| Length | 108 mm |
| Housing material | Plastic PC |
| Storage temperature | from -25 to 75 °C |
| Built-in depth | 101 mm |
| Degree of protection (IP) | IP65 |
Ipf Kdb AUSY1050(DE)
ipf_kdb_AUSY1050_de.pdf
Ipf Adb CM030980(DE)
ipf_adb_CM030980_de.pdf
Ipf Bda CM03X980(DE)
ipf_bda_CM03x980_de.pdf
Ipf Ukc CM030980(DE)
ipf_ukc_CM030980_de.pdf
Ipf Mcd CM030980(DE)
ipf_mcd_CM030980_de.pdf
Ipf Cek CM030980(DE)
ipf_cek_CM030980_de.pdf
Ipf Ulz Standard M1
ipf_ulz_standard_m1.pdf
Ipf Ccc Standard M1
ipf_ccc_standard_m1.pdf
Ipf Csa Standard M1
ipf_csa_standard_m1.pdf
Ipf Apb CM030980(DE)
ipf_apb_CM030980_de.pdf

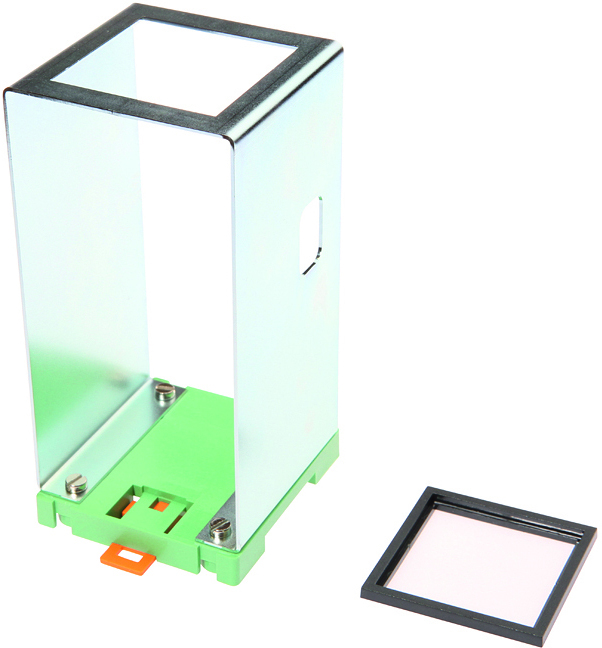

accessories counter, Mounting rail adapter, 145x84x70mm, Straight, DIN rail (top hat rail) 35 mm, Plastic, Snap connectionAC000036

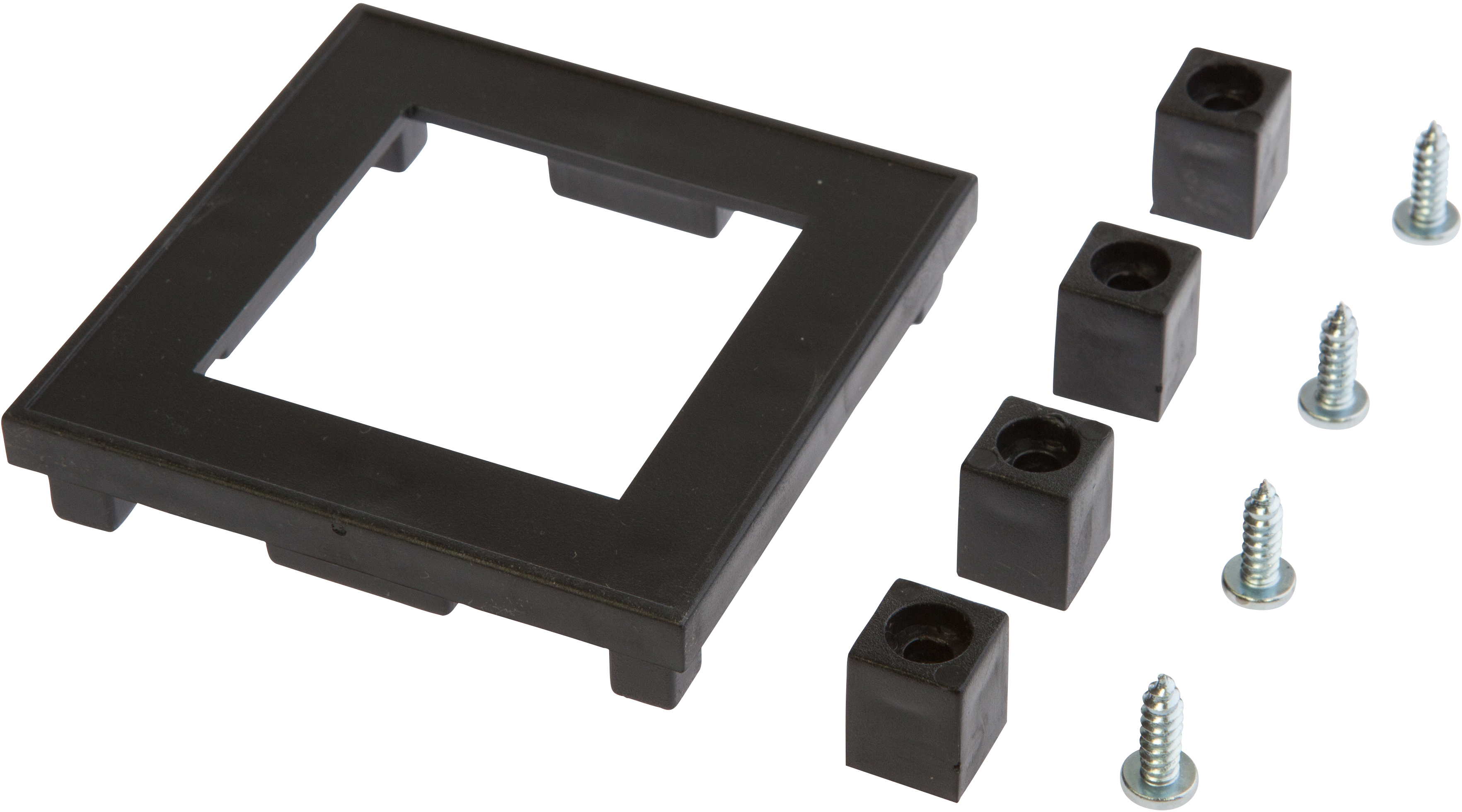

accessories counter, Mounting frame, 72x72mmAC000037- accessories counter, Mounting frame, 60x75mm, Mounting type ScrewingAC000028
